Configuring an Email Server's SSL Certificate

If you want to use your SSL certificate for mail, configure to the following settings.

Ispmanager

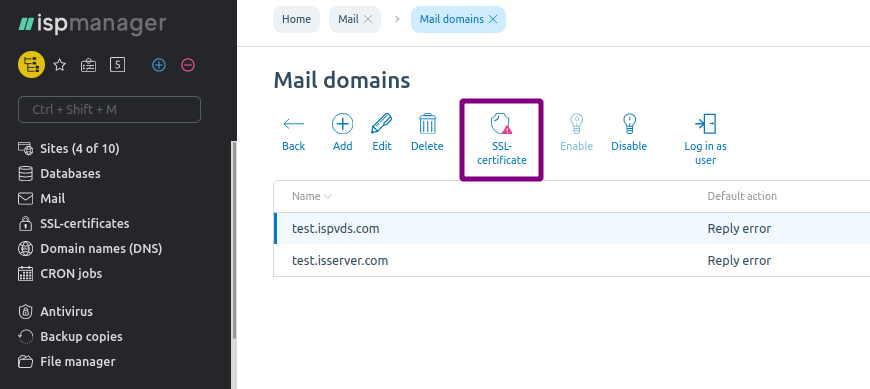

In the ISPmanager control panel, go to Domains — Mail Domains and click SSL-certificate on the toolbar.

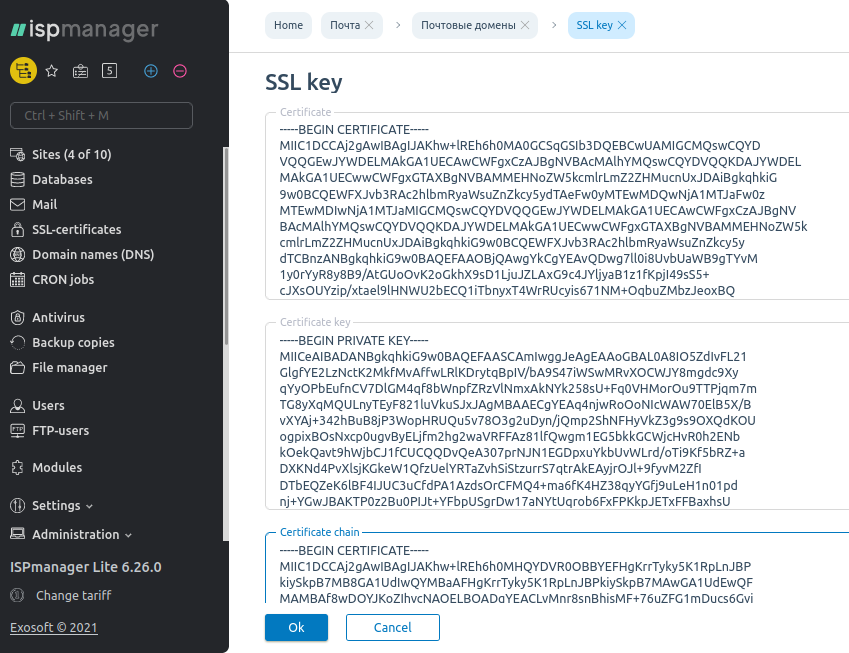

Replace the key values with your certificate keys and press OK.

Redhat-based

Exim Mail Server

Copy the SSL certificate file and the file with the key in /etc/exim/ssl/ . Enable access privileges for these files:

chmod 444 /etc/exim/ssl/mydomain.com.crt

chmod 400 /etc/exim/ssl/mydomain.com.key

Where mydomain.com.crt is the certificate name and mydomain.com.key is the name of the file with the key.

Open the exim.conf file for editing:

vi /etc/exim/exim.conf

Make the following edit:

# TLS/SSL

tls_advertise_hosts = *

tls_certificate = /etc/exim/ssl/mydomain.com.crt

tls_privatekey = /etc/exim/ssl/mydomain.com.key

daemon_smtp_ports = 25 : 465 : 587

tls_on_connect_ports = 365

Restart the mail server using the command:

systemctl restart exim

Dovecot Mail Server

Copy the SSL certificate file in /etc/pki/dovecot/certs/ and the file with the key in /etc/pki/dovecot/private/. Enable access privileges for these files:

chmod 600 /etc/pki/dovecot/certs/mydomain.com.crt

chmod 600 /etc/pki/dovecot/private/mydomain.com.key

Where mydomain.com.crt is the certificate name and mydomain.com.key is the name of the file with the key.

Open the 10-ssl.conf file for editing:

vi /etc/dovecot/conf.d/10-ssl.conf

Make the following edit:

ssl = yes

ssl_cert = </etc/pki/dovecot/certs/mydomain.com.crt

ssl_key = </etc/pki/dovecot/private/mydomain.com.key

Restart the mail server using the command:

systemctl restart dovecot

Debian-based

Exim Mail Server

Copy the SSL certificate file and the file with the key in /etc/exim4/ssl/. Enable access privileges for these files:

chown root:root /etc/exim4/ssl/mydomain.com.crt

chmod 644 /etc/exim4/ssl/mydomain.com.crt

chown Debian-exim:Debian-exim /etc/exim4/ssl/mydomain.com.key

chmow 400 /etc/exim4/ssl/mydomain.com.key

Where mydomain.com.crt is the certificate name and mydomain.com.key is the name of the file with the key.

Open the exim4.conf.template file for editing:

vi /etc/exim4/exim4.conf.template

Make the following edit:

tls_certificate = /etc/exim4/ssl/domain.com.crt

tls_privatekey = /etc/exim4/ssl/domain.com.key

Restart the mail server using the command:

systemctl restart exim4

Dovecot Mail Server

Copy the SSL certificate file in /etc/dovecot/ and the file with the key in /etc/dovecot/private/. Enable access privileges for these files:

chown root:dovecot /etc/dovecot/mydomain.com.crt

chmod 644 /etc/dovecot/mydomain.com.crt

chown root:dovecot /etc/dovecot/private/mydomain.com.key

chmod 600 /etc/dovecot/private/mydomain.com.key

Where mydomain.com.crt is the certificate name and mydomain.com.key is the name of the file with the key.

Open the 10-ssl.conf file for editing:

vi /etc/dovecot/conf.d/10-ssl.conf

Make the following edit:

ssl = yes

ssl_cert = </etc/dovecot/mydomain.com.crt

ssl_key = </etc/dovecot/private/mydomain.com.key

Restart the mail server using the command:

systemctl restart dovecot
